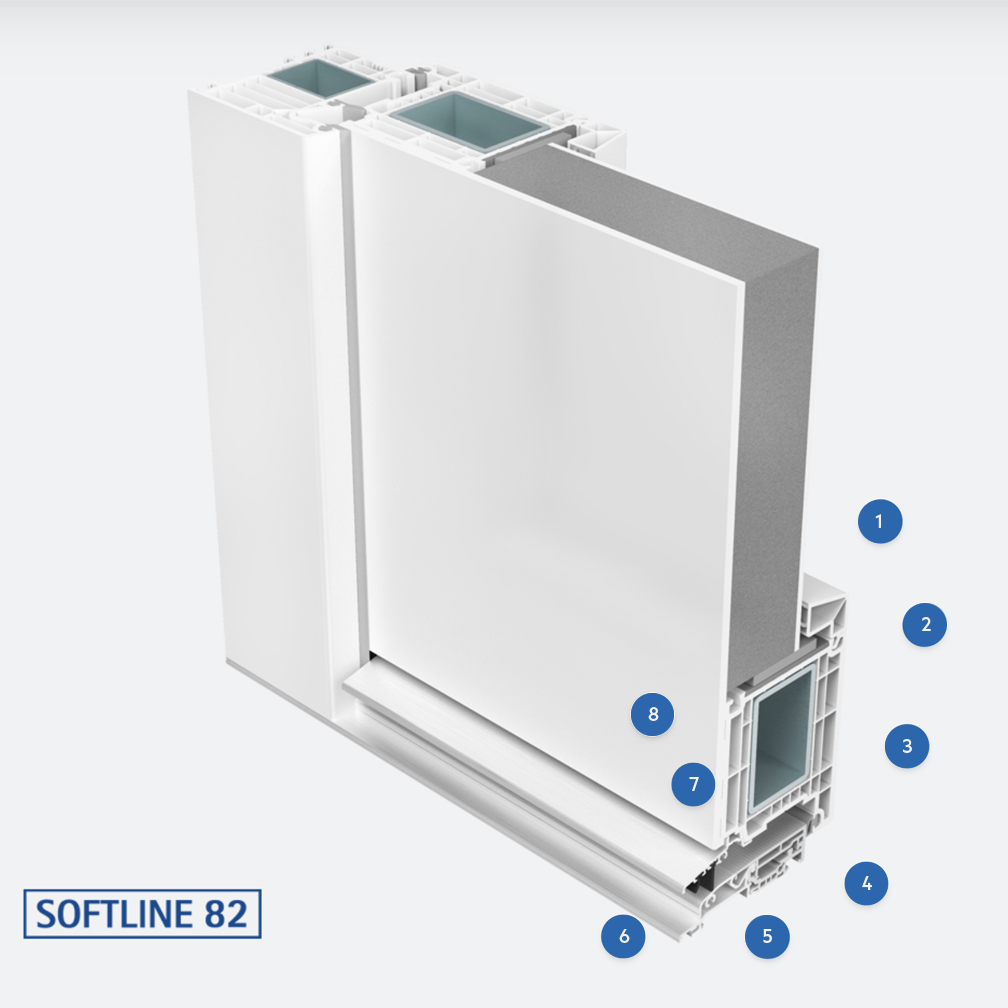

1-Thanks to the 28 mm glass slot height, the expanded glazing area offers unlimited design possibilities in combination with various glass and door filler materials on the market.
2-The 82 mm basic structure depth is ideal for providing superior thermal insulation.
3-Thanks to the wing structure with enhanced thermal performance, outstanding insulation values are achieved with Ud values down to 1.3 W/(m²K).
4-With the thermal aluminum threshold applied at the floor threshold, superior thermal insulation is achieved, energy losses are reduced and unwanted cold air leaks are prevented by providing effective protection against cold air intakes.
5-The double gasket structure prevents wind infiltration and heat loss, creating a definitive barrier against such problems.
6-With its system-integrated, flat floor threshold, drainage feature and optimal sealing, it meets all requirements of DIN 18025 standards for barrier-free building construction.
7-Specially shaped reinforcements increase the static strength, ensuring optimal functional safety, including wide doors.
8-The increased outer wall thickness of 3.5 mm and the strongly welded corner joints guarantee the perfect stability and long life of your gate, as well as the high quality of our system.
