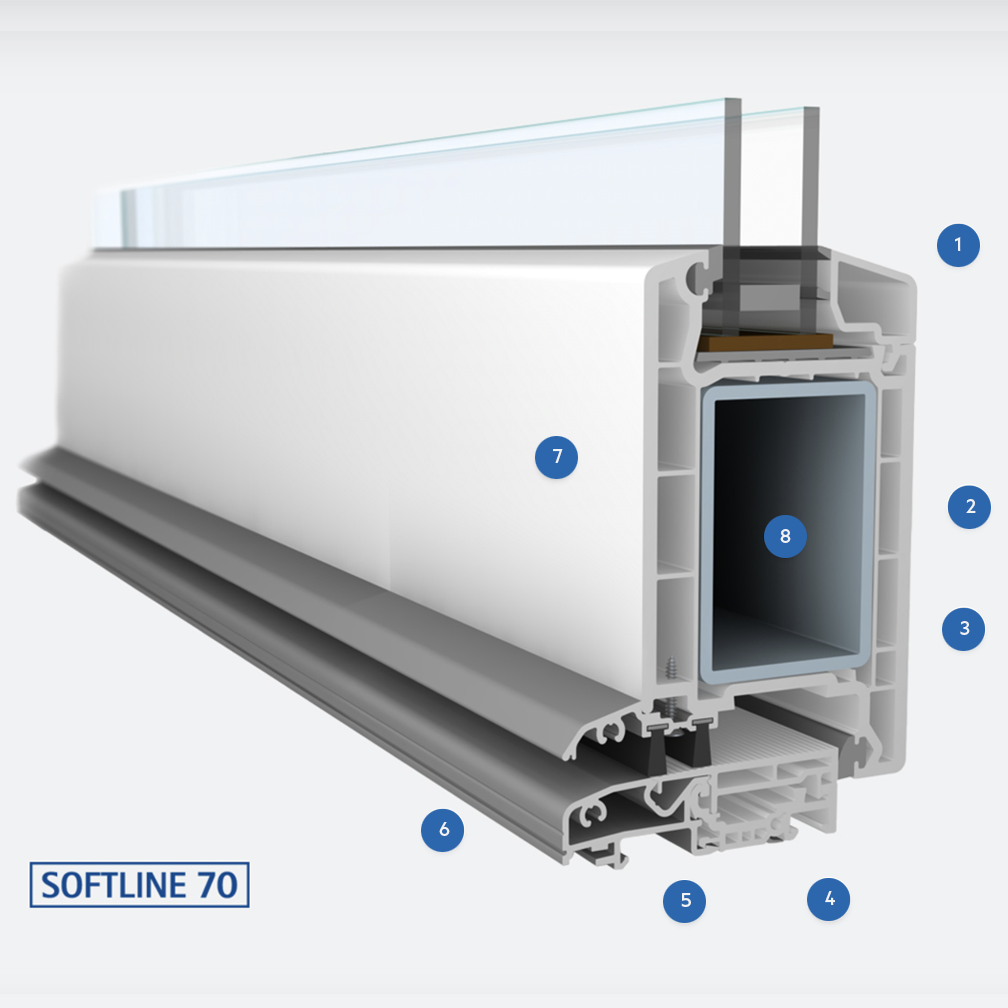

1-Thanks to the glass slot height of 1-28 mm, the expanded glazing area offers unlimited design possibilities in combination with various glass and door filling materials on the market.
2-Wing dimensions optimized in terms of thermal insulation enable insulation values up to 1.6 W/(m²K).
3-The 70 mm basic construction depth is ideal for effective thermal insulation.
4-The thermal break applied at the floor threshold provides superior thermal insulation, minimizing energy losses and preventing cold air currents, ensuring a comfortable indoor environment.
5-The double gasket structure prevents wind infiltration and heat loss, creating a definitive barrier against such problems.
6-The flat floor threshold integrated into the system meets all requirements for unobstructed building construction in accordance with DIN 18025 standards with its drainage feature and perfect sealing.
7-Increased outer wall thicknesses of 3 mm and solidly welded corner joints give your door excellent durability and longevity, while demonstrating the system’s commitment to high quality standards.
8-Specially shaped steel reinforcements increase structural integrity, ensuring optimal functional safety even for wide doors.
